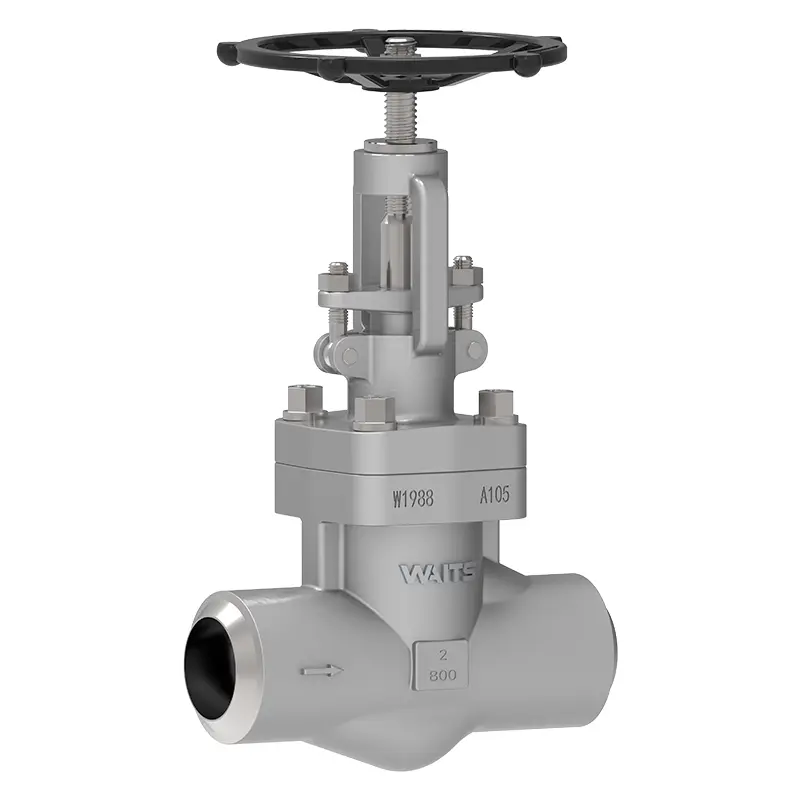

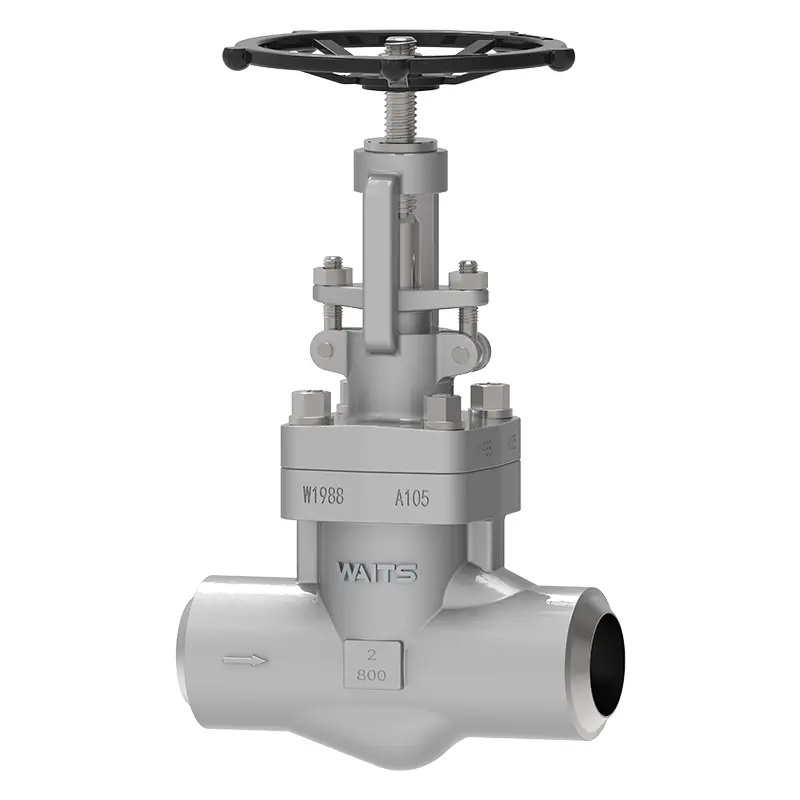

Կեղծված պողպատե եռակցված գլոբուսային փական

Waits Valve Forged Forged Steel Welded Globe Valve- ը լայնորեն օգտագործվում է այնպիսի արդյունաբերություններում, ինչպիսիք են նավթը, քիմիական, ուժը եւ մետաղագործությունը, որտեղ բարձր ներկայացումը կարեւոր է: Եթե պատահում եք, որ այս արդյունաբերության մեջ եք, կարող եք կապվել մեզ հետ `ձեզ շատ մրցունակ գին տրամադրելու եւ ավելի շատ շահույթ ստանալու ձեզ համար:

Ուղարկել հարցում

ապրանքի նկարագրությունը

Waits Valve high quality Forged Steel Welded Globe Valve‌‌ is made of high-quality steel, such as carbon steel, stainless steel or alloy steel, through a forging process. This process makes the metal structure denser, greatly improving the strength and toughness of the valve, enabling it to withstand extreme pressures and temperatures.

Forged Steel Welded Globe Valve‌‌ is an external threaded yoke type (OS and Y) with a lifting stem and lifting handwheel. These valves are available with either bolted or welded bonnets and in full or standard bore options.

Features and Benefits

Forged Steel Welded Globe Valve‌ meets API 602 and ASME B16.34 standards.

Compact and rugged design for high pressure and high temperature applications.

Available with bolted or welded bonnets.

Meets API 624 and ISO 15848-1 fugitive emission standards.

Body-guided disc eliminates side thrust and extends disc, seat and body life.

Preset field injection ports allow precise injection of low-emission (Low-E) packing through the bonnet (available on NPS 1/4–2 (DN 8–50) 150–1500 lb bolted bonnet ball valves).

Available disc designs include: globe, stop-check, needle and flow control.

Optional designs include dual packing, leak-tight connections and live loads.

Implementation Standards-Forged Steel Welded Globe Valve‌‌
Design Standards	API602, DIN 3356
Welding Standards	ASME B16.25, ASME B16.11
Connection	SW, BW
Test Acceptance	API 598 EN12266
Structure Length	ASME B16.10/EN558
Pressure and Temperature Ratings	ASME B16.34
Fire Test	API607 API6FA
Low Leakage Standard	API 622
Anti-Corrosion Design	NACE MR 0175

Application-Forged Steel Welded Globe Valve‌‌
Size	DN15~DN50（NPS½"~12"）
Pressure Range	PN16～PN420, Class150～Class2500
Temperature Range	-29℃～550℃
Application	Petrochemical high temperature cracking unit, power steam pipeline network, metallurgical high pressure fluid control
Drive Mode	Manual, electric, pneumatic
Valve Body/Valve Cover	Forgings: A105, A182 F304, F304L, F316, F316L, F51, F53, B148, A350 LF2, LF3, LF5,
Valve Core	Forgings: A105, A182 F304, F304L, F316, F316L, F51, F53, B148, A350 LF2, LF3, LF5, Monel,
Sealing Surface	Stainless steel, high temperature alloy, alloy steel, PTFE,
Valve Stem	A182-F6a-F304-F316-F51 17-4PH/XM-19 ...

Customer Suggestions

1. When you get the Forged Steel Welded Globe Valve, please follow the flow direction arrow and avoid reverse installation. Clean both ends of the pipe and use TIG welding to prevent seal damage.

2. Always remember to open/close slowly, and do not over-tighten when fully open or closed.

3. When you are not using it for flow control, remember to close it and avoid frequent operation.

4. Check for leaks regularly and replace the packing if necessary. For more details, please contact us and we will teach you!

5. Clean once a year and lubricate the valve stem and bearings with heat-resistant grease. Repair or replace worn sealing surfaces.
